Lightning Eliminators

Dissipation Array System

Lightning is nature’s way of equalizing the voltage between storm clouds and the earth. For a strike to occur, a connection must be made. Lightning is an electric discharge that attempts to equalize voltage between storm clouds and the earth. The difference in polarity between the bottom of the cloud and the ground is the charge differential. When this charge differential is high, the cloud begins to form downward leaders and objects on the ground begin to form upward streamers. When a leader connects with a streamer, it gives lightning a path for exchanging charge between the earth and the cloud, reducing the charge differential to upward streamers.The DAS interrupts the formation of these upward streamers through point discharge, a phenomenon where a well-grounded point exchanges ions between the air and the ground. DAS technology interrupts the formation of upward streamers preventing direct strikes to keep your operations running through the storm.

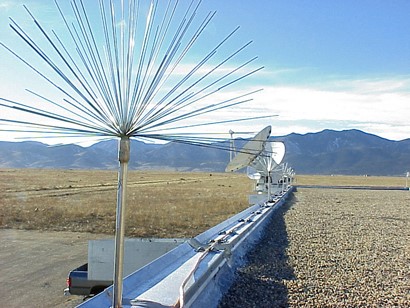

Spline Ball Terminal

The Spline Ball Terminal from Lightning Eliminators offers a superior alternative to standard air terminals for new or existing lightning protection systems. In its primary mode, the SBT lowers the risk of direct strikes through a phenomenon known as charge transfer, where a well-grounded point exchanges ions between the air and earth. This ionizing capability helps keep the local electric field below lightning potential, making the protected site less likely to experience direct strike

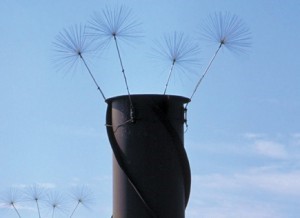

Spline Ball Ionizer

The SBI from Lightning Eliminators is a modular lightning prevention component used to supplement Dissipation Array installations, and as the first line of defense for structures that require lightweight protection with a low wind profile. The patented SBI is a hybrid lightning protection concept engineered to provide multiple layers of protection for critical applications. In its primary mode, the SBI lowers the risk of direct strikes by utilizing a phenomenon known as charge transfer, where a well-grounded point exchanges ions between the air and earth. This ionizing capability helps keep the local electric field below lightning potential, making the protected site less likely to experience direct strikes.

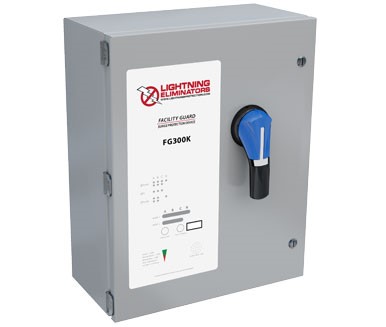

Surge Protection Device

The FG300K Series is a high-performance UL 1449 Listed Type 1 SPD designed for critical panels located in the harshest environments. The Surge Protection Device (SPD) achieves the highest UL performance ratings for the Nominal Discharge Current (In) and High Current (SCCR) tests while providing a low Voltage Protection Rating

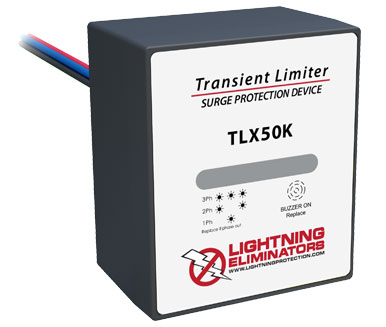

TLX50K Transient Limiter

Nipple- Mounted Surge Protector for Light Load.

Service Entrances & Subpanels.

Maximum Surge Capacity 50kA per phase 8/20μs

All single and three phase configurations from

120 to 600VAC.

Hybird technology for enhanced Temporary

Overvoltage (TOV) protection with no leakage

current.

Real-time diagnostics include LED per phase and

audible alarm.

Indoor/Outdoor IP66/NEMA 6 rated enclosure.

(NEMA 6 exceeds NEMA 4 or 4X).

Panel mount via M22 or 1/2” NPT.

Mounting is availabe on back or din-rail.

DLP-DIN-8 Data Line Protector

A Unique, State-of-the-Art, Series Hybrid

Surge Protector in a Low Cost, Compact,

8 Circuit Enclosure.

The DLP-DIN-8 is designed to protect all

types of digital and communication circuits.

The LDLP-DIN-8 is designed to protect analog

signals, circuit loops, and low frequency

signals.

• Maximum Surge Current: 10,000 Amps
• Maximum Energy Handling: 500 Joules
• Response Time : < 5 Nanoseconds
• Clamping Voltage: Selected by Customer
• Operating Altitude: Up to 10,000 Feet
• Operating Humidity: 5% to 95%
• Operating Temperature: – 40C to 85C
• Enclosure Type: EMP/RFI Shielded
