Forney

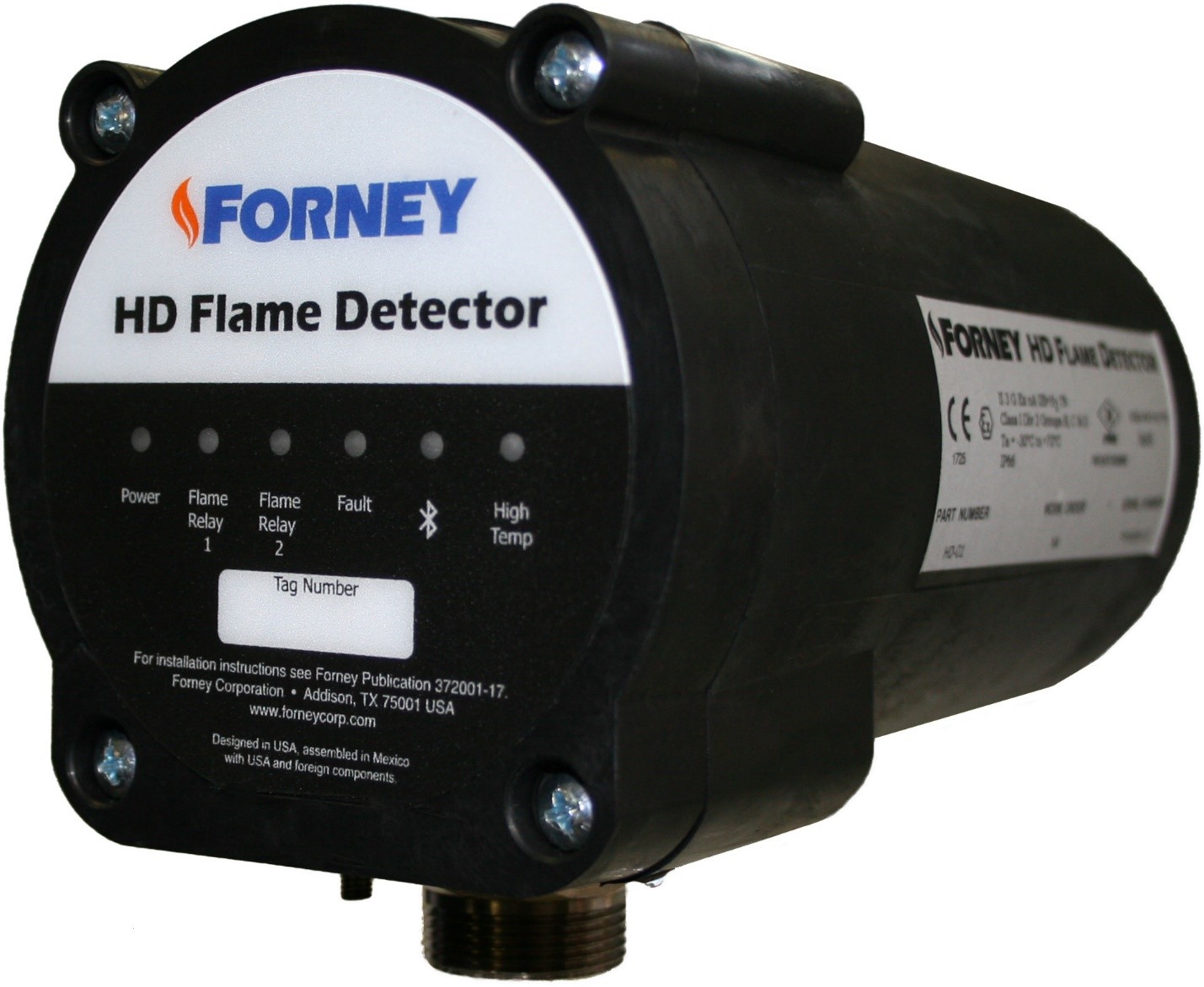

HD Flame Detector

The Forney High Definition (HD) Flame Detector integrates both Infrared (IR) and Ultraviolet (UV) optical sensors along with an amplifier and high speed signal processor. The high speed signal processor is able to analyze frequency resolution allowing for precise discrimination between multiple burners and background radiation. HD Detector includes two flame relays, one for signals from each optical sensor. Four different profiles are selectable for maximum flexibility under different operating conditions. 4 to 20mA analog outputs are provided for remote display options.

Flame Scanner IDD

Forney’s Intelligent Dynamic Detector (IDD) II Series is designed to accurately detect and discriminate the luminous flames produced by burning oil, coal, and lignite fuels. The IDD-II (Filtered) flame detector is typically used for sensing heavy fuel oil and coal flames. The IDD-IIU (Unfiltered) flame detector is typically used for sensing light fuel oil flames. The IDD-IIL (Lignite) flame detector is specifically designed to sense low flame frequency produced by lignite and high ash coal flames. The IDD-II Series is used in conjunction with Forney’s supporting amplifier the IDD-9000. The IDD-II’s solid state circuitry amplifies a continuously changing voltage signal transmitted from the lead sulfide sensor when flame is sensed. The signal is then sent to the amplifier by way of a four conductor cable. The amplifier processes the signal and provides outputs to the burner management system.

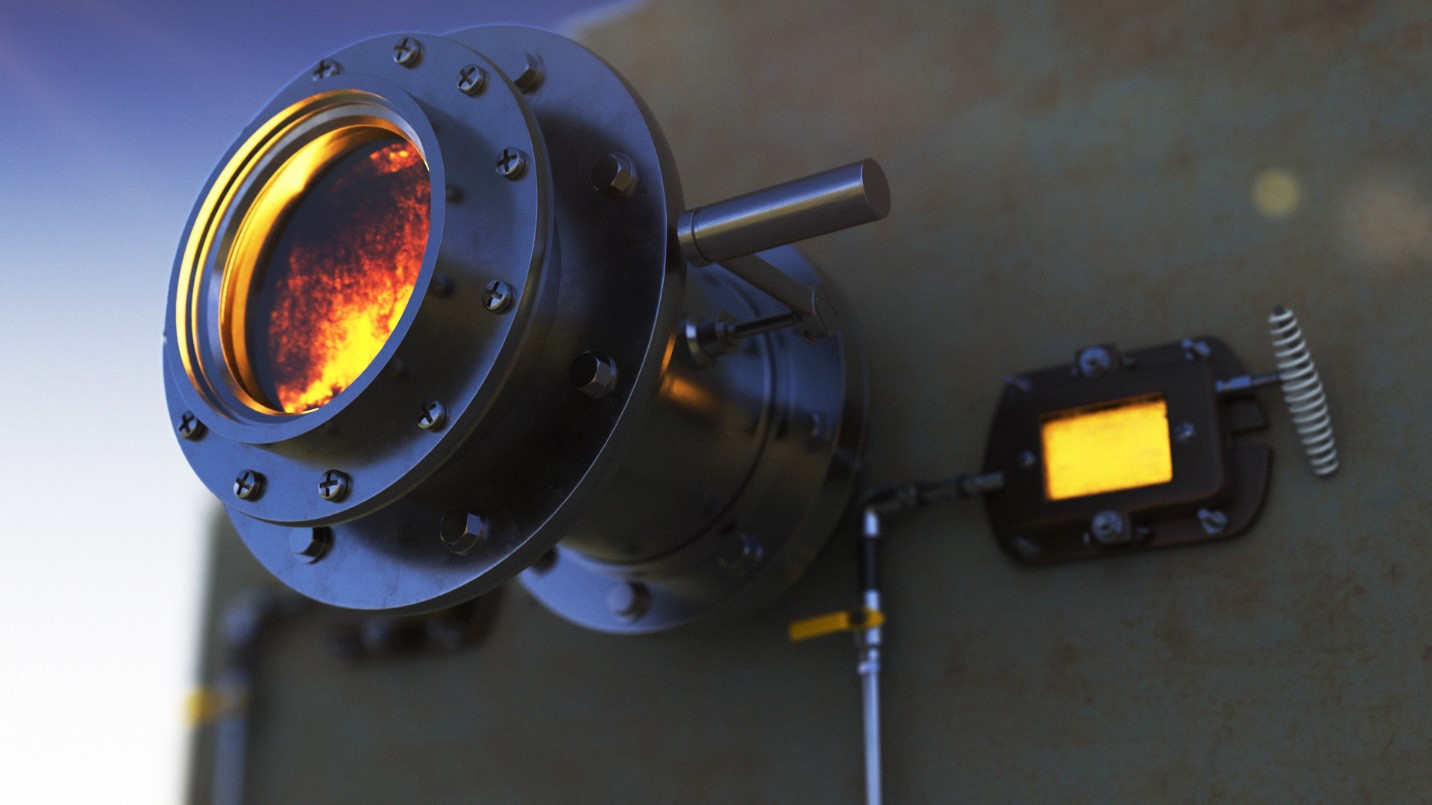

Clear ports

Forney ClearPorts are observation ports for HRSG ducts and hot furnaces, offering an unobstructed view of burner flames and pressure parts downstream. These view ports feature a butterfly-style isolation plate to prevent heat conduction towards the glass, ensuring durability against high temperatures without discoloration. Available in sizes of 4”, 6”, and 8” for installation on a standard #150 ASME flange.

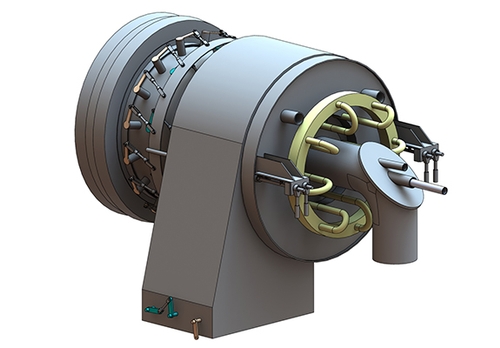

Eagle Air II Coal/Gas Burner

Forney in Conjunction with Storm Technologies brings you the Eagle Air II Burner!

Need the ability to fire both coal or natural gas so your plant can take advantage of the most cost effective fuel option? Eagle Air II is a Wall-Fired-Boiler Dual-Fuel Burner that gives you that flexibility.

Oil Igniter DURAFire

The DURAFire air atomized No. 2 oil igniter features the only “protected primary combustion zone” design on the market. As a result this igniter is self-stabilized, highly reliable and requires virtually no maintenance. Atomization takes place at the rear of the igniter away from the heat of the tip resulting in no fouling or need for cleaning. Most applications require no igniter retraction reducing installation costs and ongoing maintenance.

The DURAFire® oil igniter delivers the most reliable source of energy for main flame ignition, flame stabilization, and boiler warm-up.
